LCN Line

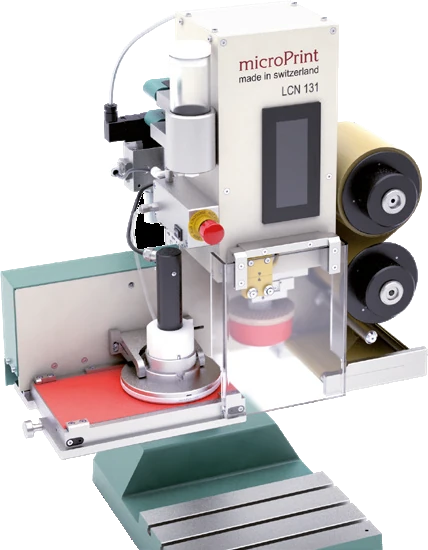

The LCN line features compact pneumatic machines for single-colour pad printing that are equipped with closed inkwells. LCN line machines are suspended above the print object. Using the adjustment option on the cliché holder, the X and Y directions and also the angle of the printing position can be adjusted precisely. The integrated pad cleaning system works at the same height as the cliché slide, thereby reducing the travel distance of the pad. This special arrangement makes the cliché, pad and cleaning tape readily accessible and thus very easy to reach. Operation is performed through the graphic monochrome touchscreen display. The special feature of this machine series is its sublevel printing function, which also allows very large parts to be printed.
Features:
- Closed inkwell system
- Pad cleaning
- Mechanically adjustable positions
- Automatic ink thinners
- Digital interfaces or real-time Ethernet
Introduction movie:
Specification:

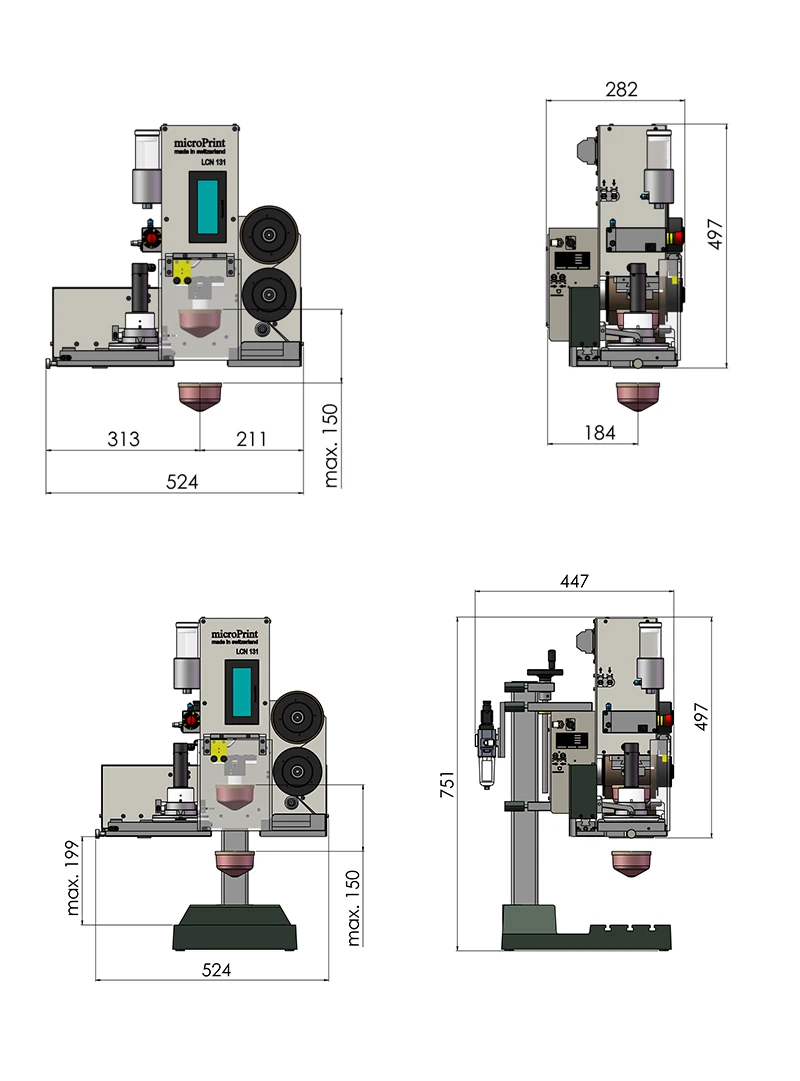

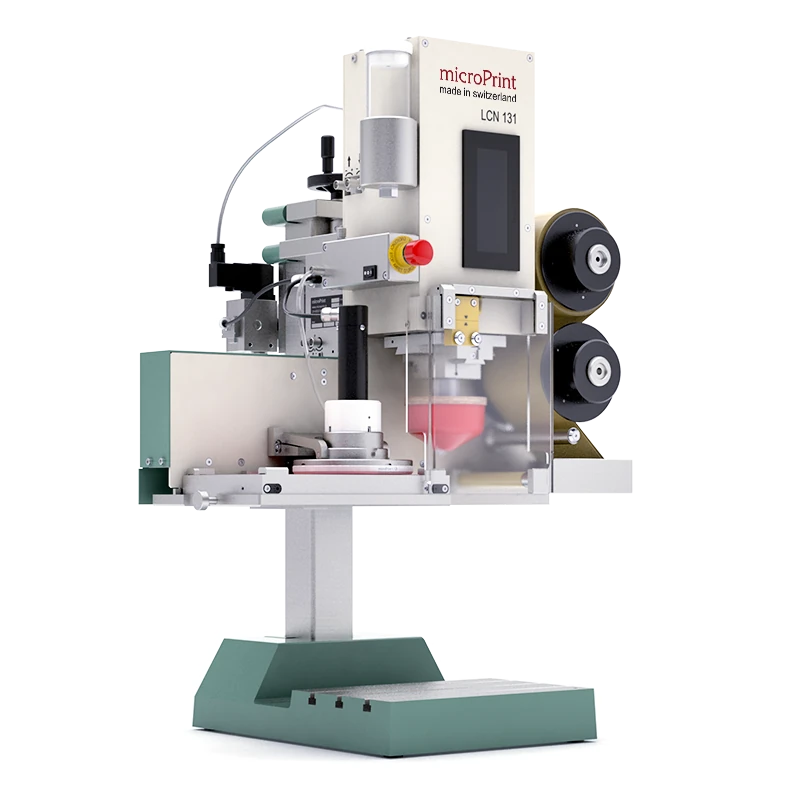

| LCN 131 | ||
 | Printing capacity: | wo.c. 2000/hr, w.c. 1200/hr |
| Printing force: | max. 480N | |
| Drive: | pneumatic | |
| Air consumption: | 76 l/min | |
| Compressed air supply: | 5–6 bar (87 psi) | |
| Control system: | PLC Panasonic | |
| Main voltage: | 110–240V / 50–60Hz. | |
| Weight: | Machine: 32kg, Stand: 14kg | |
| Cliché size open system: | - | |
| Cliché size closed system: | max. 130 x 230mm | |
| Cliché thickness: | 0.5/10mm | |
| Cups: | 1x56,1x70,1x86,1x120mm | |
| Number of colours: | 1 | |
| Data sheet in PDF: | LCN-Linie, LCN131 | |
 | ||
| LCN 133 | ||
 | Printing capacity: | until 1800/hr |
| Printing force: | max. 1100N | |
| Drive: | pneumatic | |
| Air consumption: | ||
| Compressed air supply: | 5–6 bar (87 psi) | |
| Control system: | PLC Panasonic | |
| Main voltage: | 110–240V / 50–60Hz. | |
| Weight: | Machine: 42kg, Stand: 22kg | |
| Cliché size open system: | - | |
| Cliché size closed system: | max. 200 x 250mm | |
| Cliché thickness: | 0.5/10mm | |
| Cups: | 3x56,2x70,2x86,1x120mm | |
| Number of colours: | 1-3 | |
| Data sheet in PDF: | LCN 133 | |
| ||

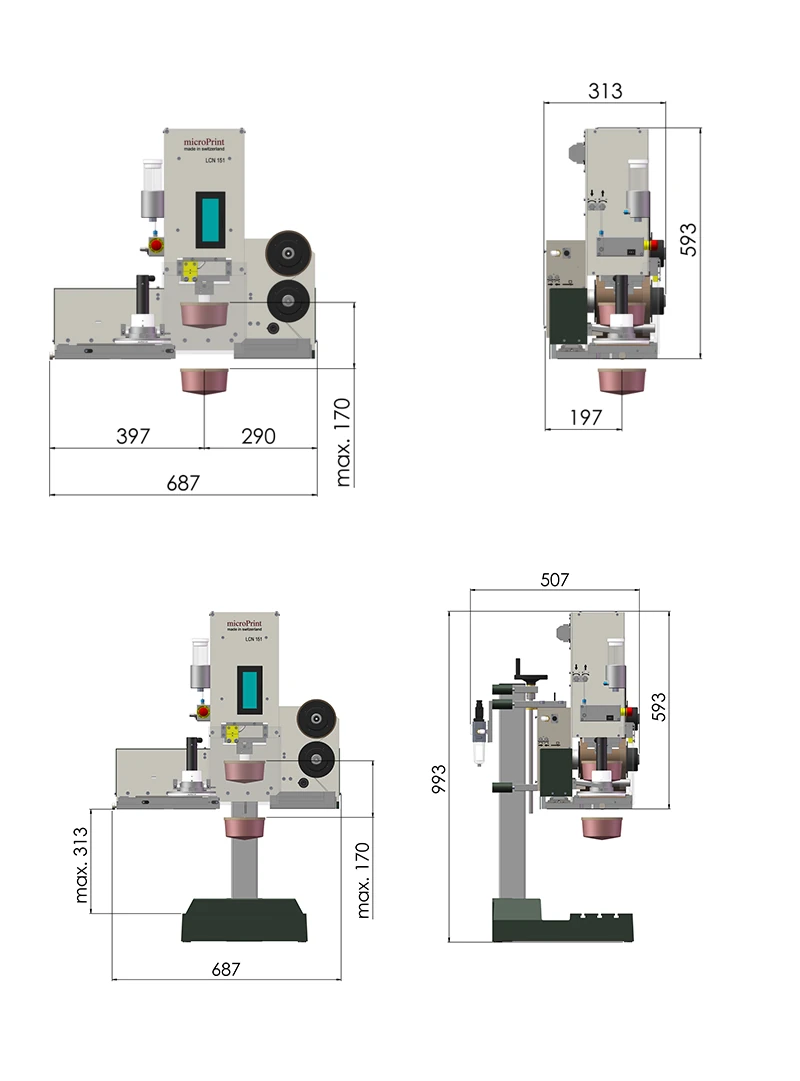

| LCN 151 | ||
 | Printing capacity: | wo.c. 1800/hr, w.c. 1200/hr |
| Printing force: | max. 1100N | |
| Drive: | pneumatisch | |
| Air consumption: | 135 l/min | |
| Compressed air supply: | 5–6 bar (87 psi) | |
| Control system: | PLC Panasonic | |
| Main voltage: | 110–240V / 50–60Hz. | |
| Weight: | Machine: 61kg, Stand: 22kg | |
| Cliché size open system: | - | |
| Cliché size closed system: | max. 150 x 300mm | |
| Cliché thickness: | 0.5/10mm | |
| Cups: | 1x120,1x140mm | |
| Number of colours: | 1 | |
| Data sheet in PDF: | LCN-Linie, LCN151 | |
