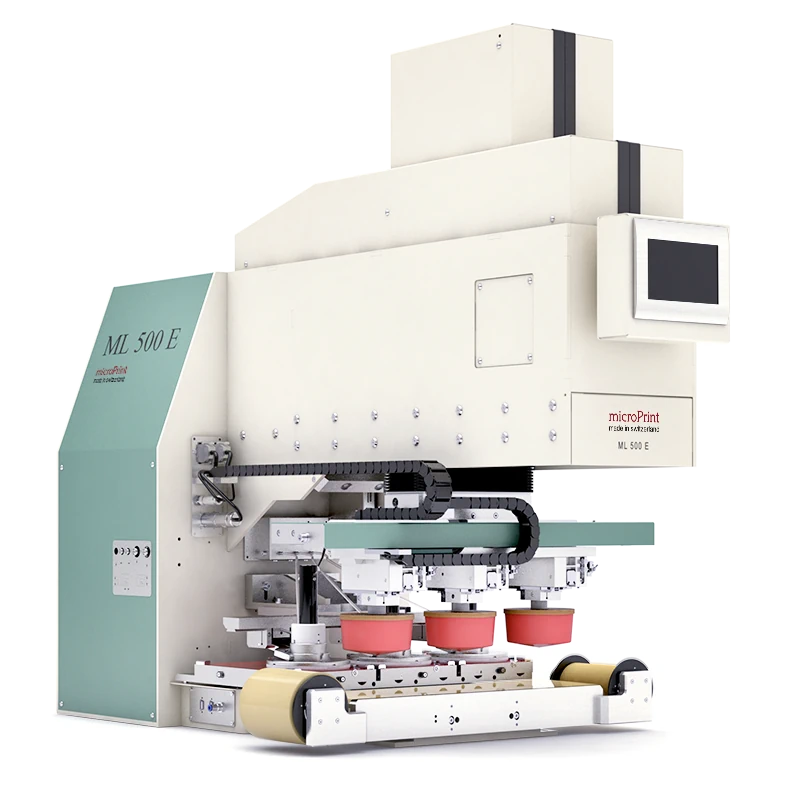

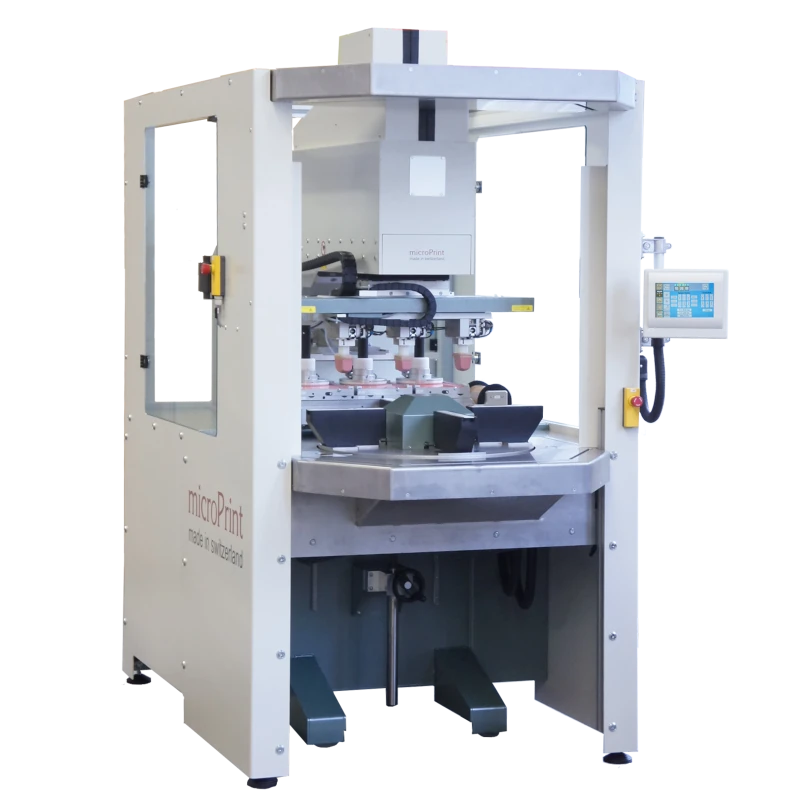

ML Line
Pad printing machines with programmable print positioning. Linear or servomotor driven. You can access and print different pictures with this machine. Primary used in flexible production areas.

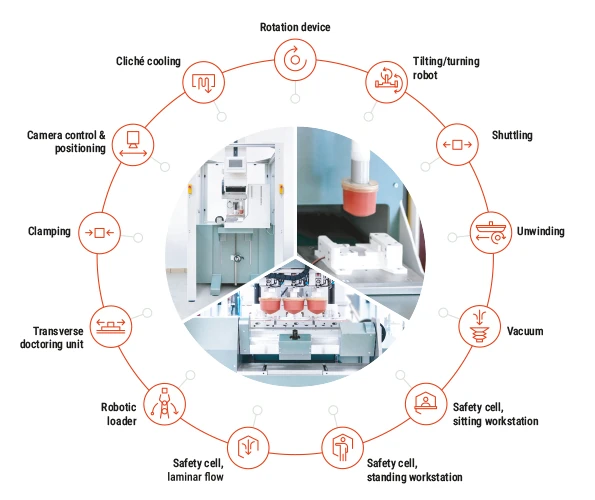

Features:
- Closed inkwell system
- Transverse doctoring unit
- Pad cleaning
- XYZ positioning over touchscreen
- Print sequence freely definable
- Automatic ink thinners
- Multi-ink pad shuttle

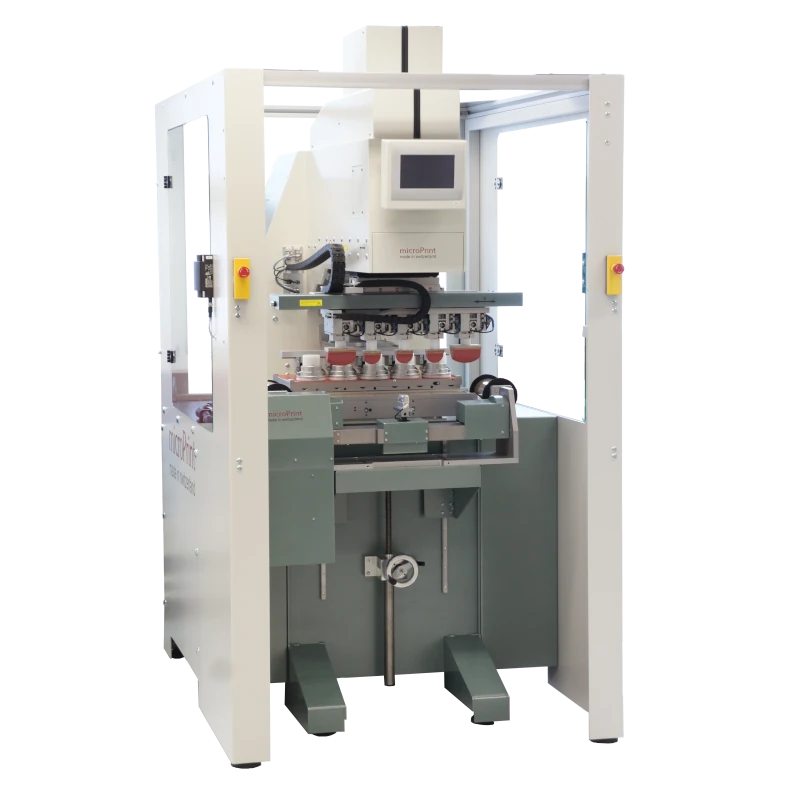

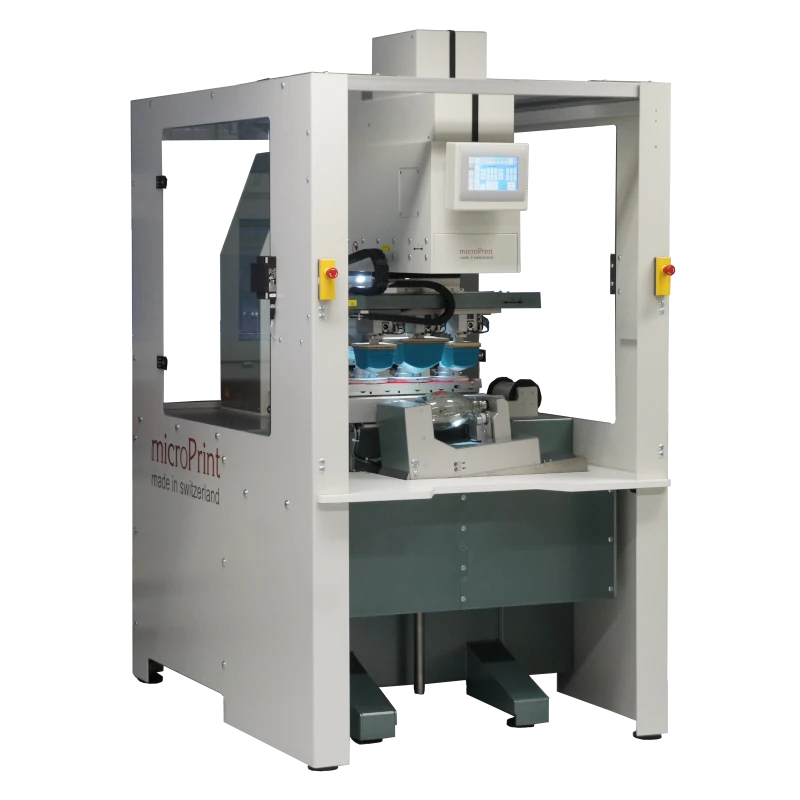

- Electric one- or two-axes rotary devices.
- Digital interfaces or real-time Ethernet
- Automatic parameter backup on a company server
Introduction movie:
Specification:

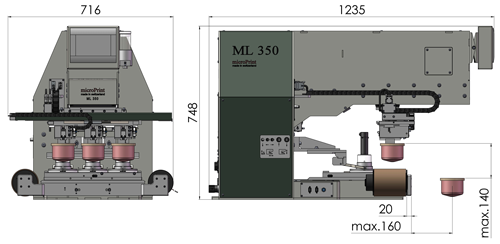

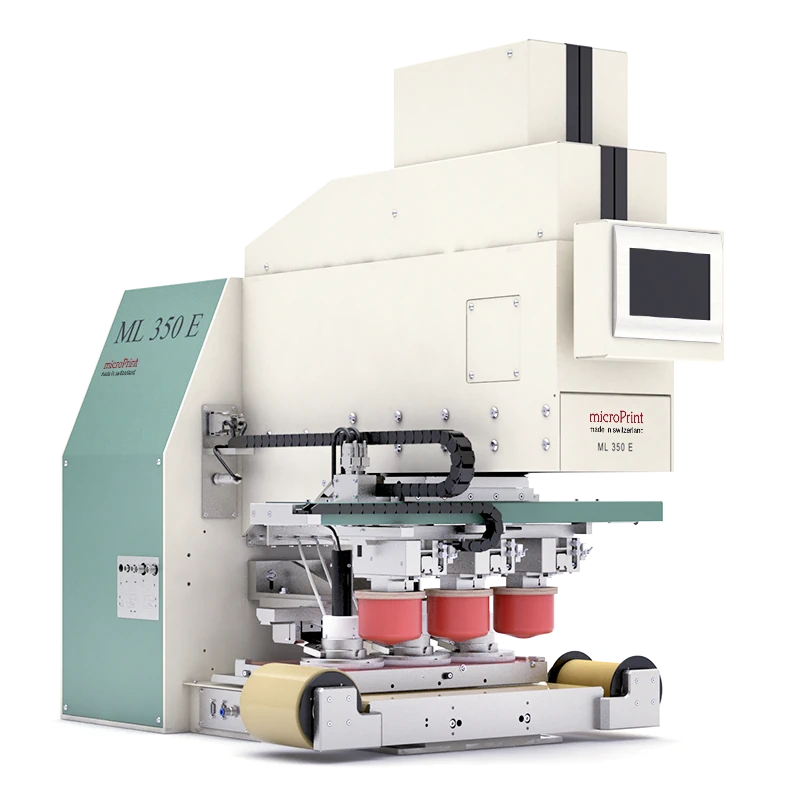

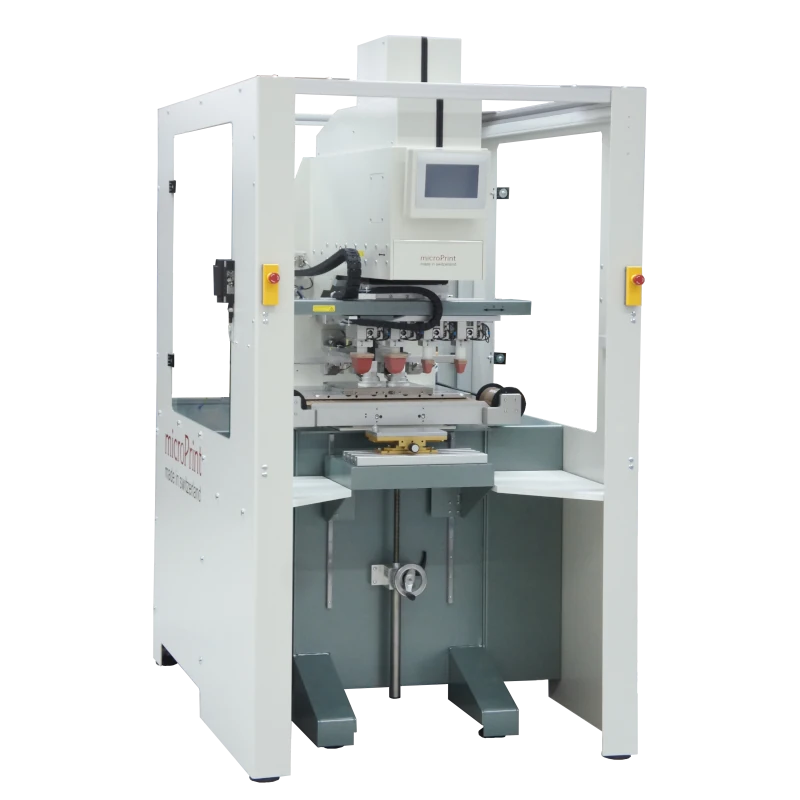

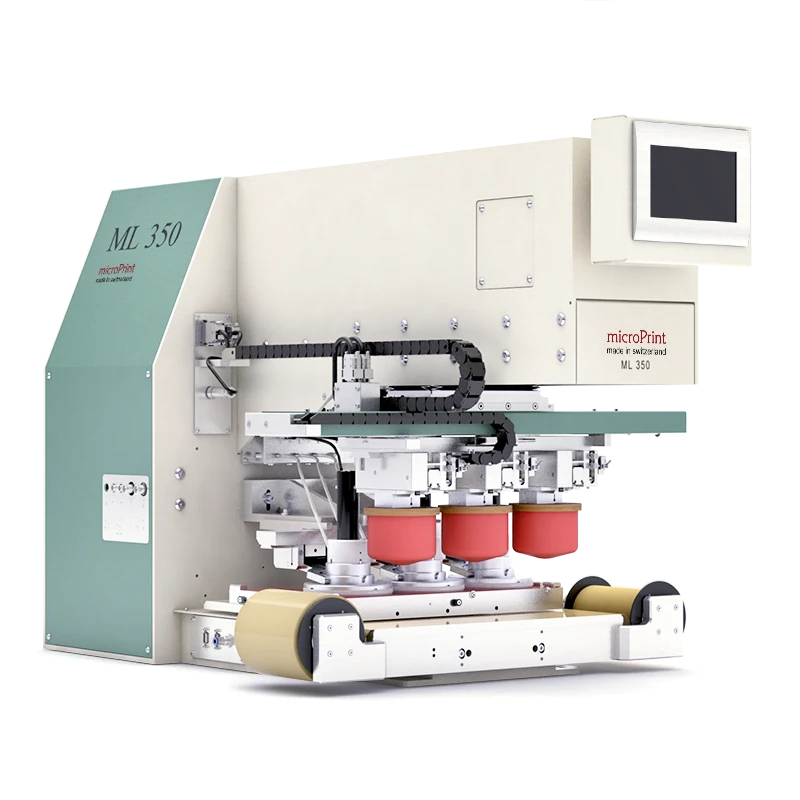

| ML 350 | ||
 | Printing capacity: | wo.c. 1500/hr, w.c. 970/hr |
| Printing force: | max. 1750N | |
| Drive: | pneumatic & linear motor | |
| Air consumption: | 162 l/min | |
| Compressed air supply: | 5–6 bar (87 psi) | |
| Control system: | PLC Beckhoff | |
| Main voltage: | 110–240V / 50–60Hz | |
| Weight: | 360kg (with base) | |
| Cliché size open system: | max. 350 x 120mm | |
| Cliché size closed system: | max. 400 x 300mm | |
| Cliché thickness: | 0.5/10mm | |

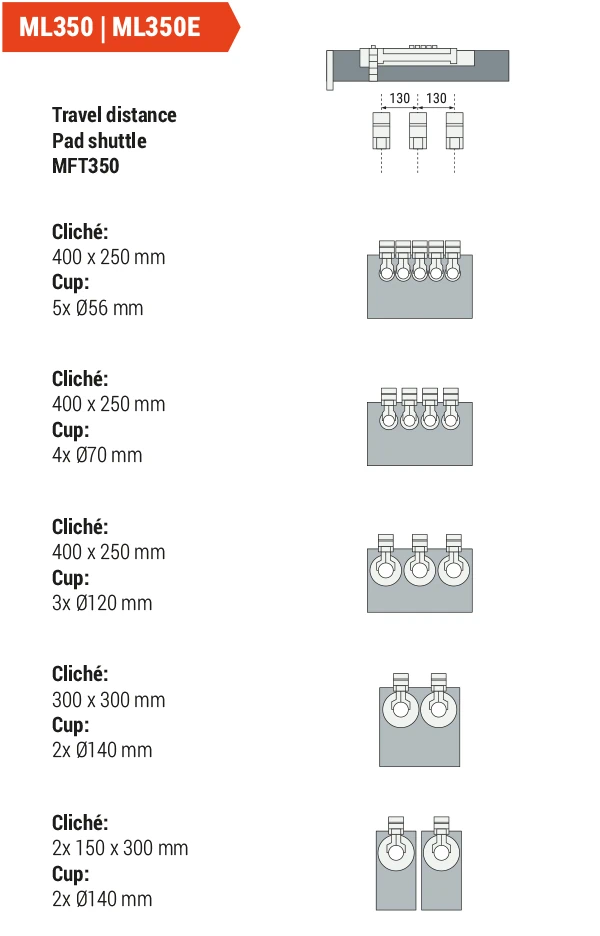

| Cups: | 6x56,5x70,4x86,3x120,2x140mm | |
| Number of colours: | 1-6 | |
| Data sheet in PDF: | ML 350 | |
 | ||

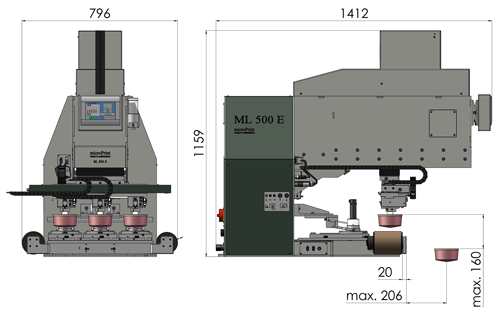

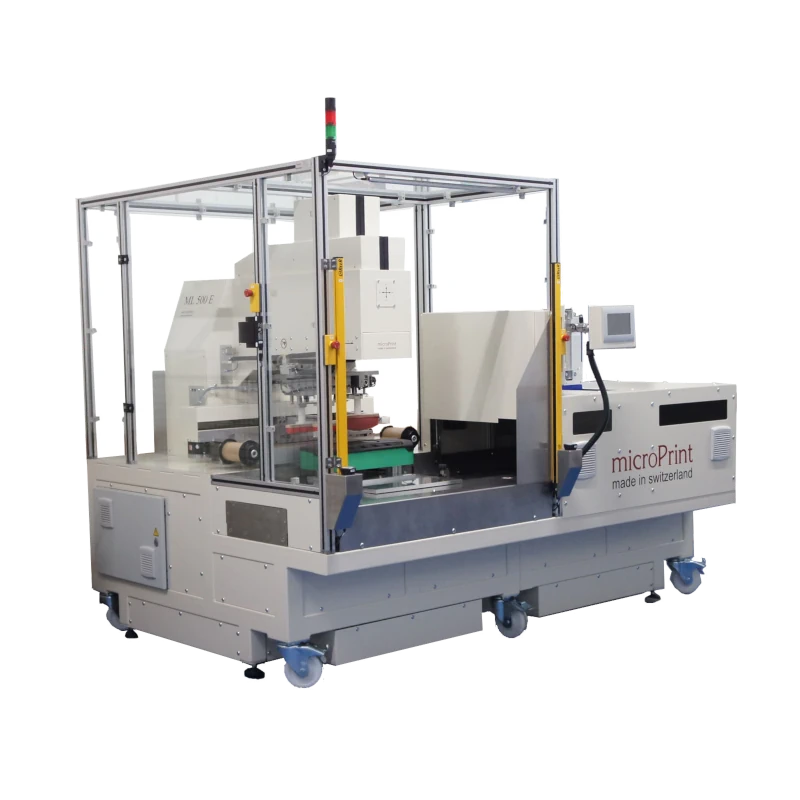

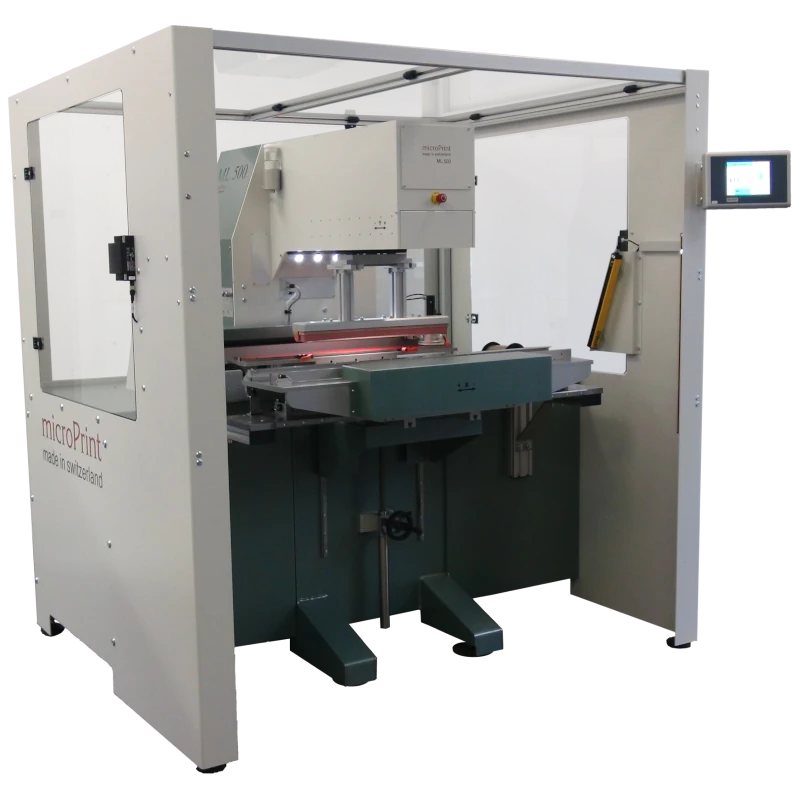

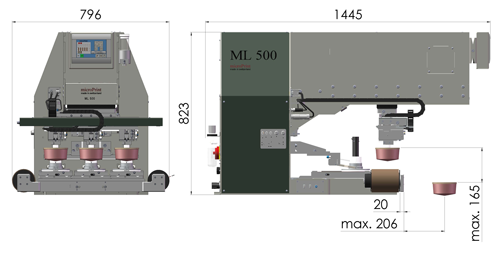

| ML 500 | ||
 | Printing capacity: | wo.c. 900/hr, w.c. 700/hr |
| Printing force: | max. 3000N | |
| Drive: | pneumatic & linear motor | |
| Air consumption: | 290 l/min | |
| Compressed air supply: | 5–6 bar (87 psi) | |
| Control system: | PLC Beckhoff | |
| Main voltage: | 3x400V / 600VA / | |
| Weight: | 260kg | |
| Cliché size open system: | max. 500 x 150mm | |
| Cliché size closed system: | max. 520 x 300mm | |
| Cliché thickness: | 0.5/10mm | |

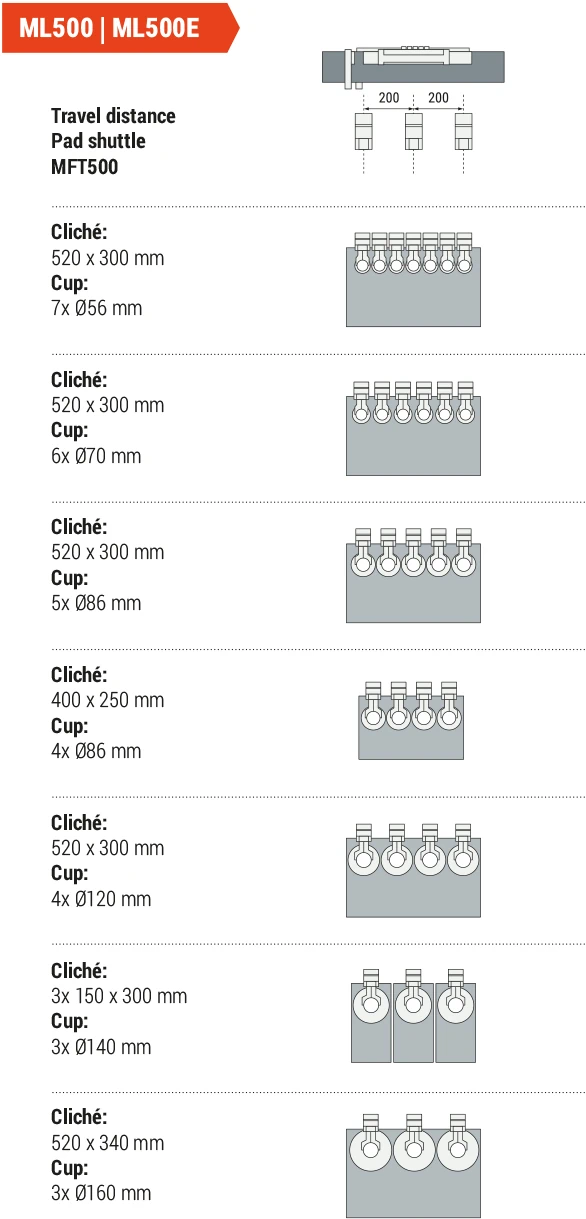

| Cups: | 8x56,6x70,5x86,4x120,3x140mm | |
| Number of colours: | 1-8 | |
| Data sheet in PDF: | ML 500 | |
| ||
