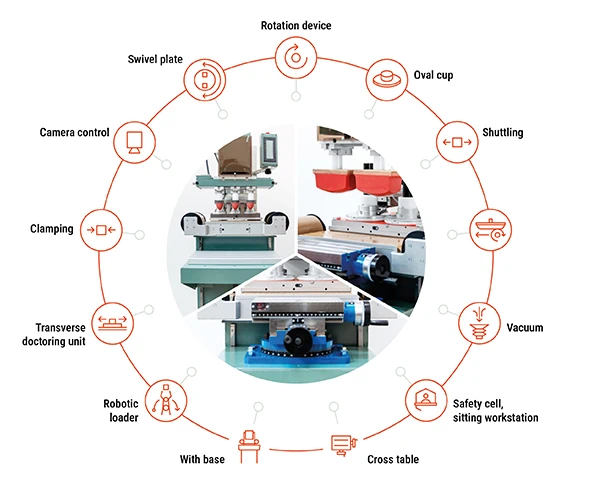

The MS line is a conventional machine Serie with all the modern features, such as automatic viscosity control and cliché temperature regulation. With pneumatic drive.
- Open or closed inkwell system
- Transverse doctoring unit
- Pad cleaning
- Mechanically adjustable positions
- Automatic ink thinners
- Pneumatic three-color or electric multi-ink pad shuttles
- Electric one-axes rotary device
- Digital interfaces or real-time Ethernet

| wo.c. 1600/hr, w.c. 1200/hr |
max. 480N |
pneumatic |
104 l/min |
5–6 bar (87 psi) |
PLC Panasonic |
110–240V / 50–60Hz. |
Machine: 75kg, Base: 89kg |
max. 120 x 120mm |
max. 130 x 250mm |
0.5/10mm |
1x56,1x70,1x86,1x120mm |
1 |

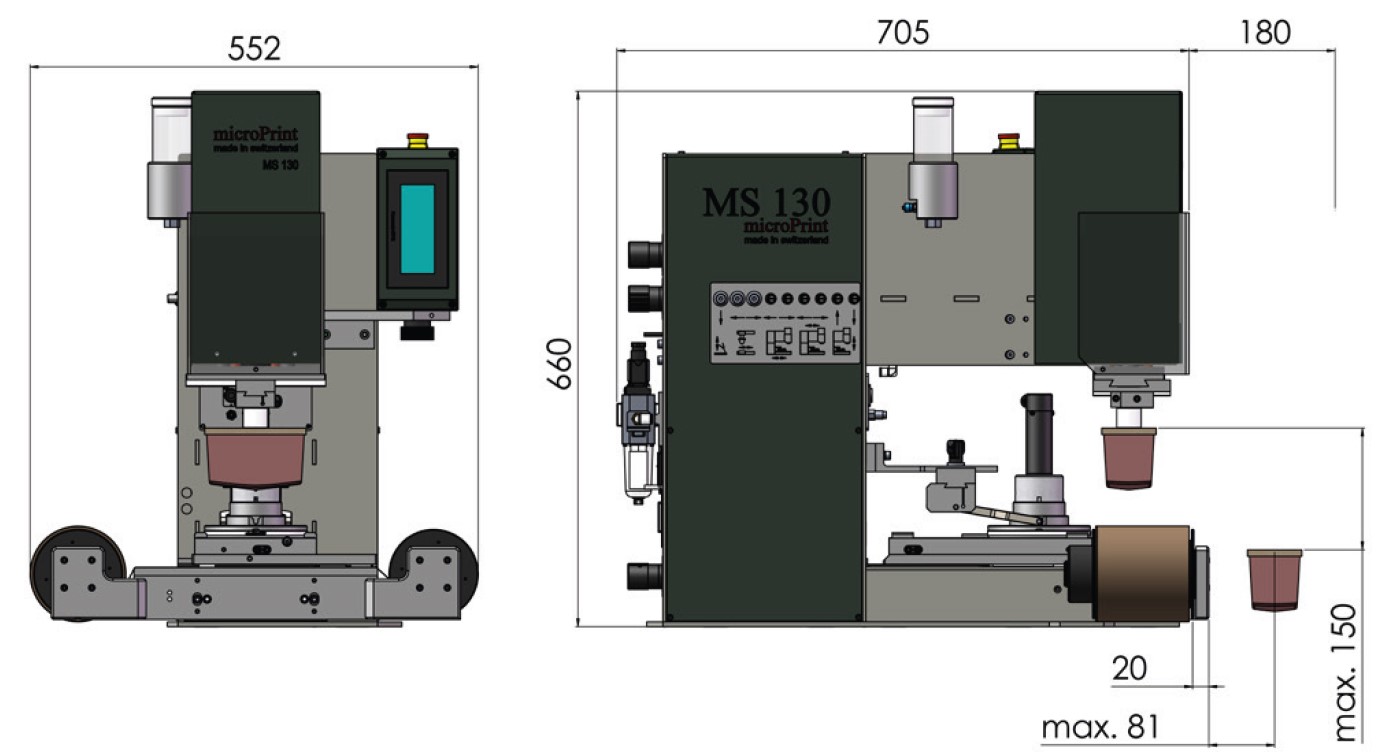

MS 130 |
|  | |

| wo.c. 1500/hr, w.c. 1000/hr |
max. 750N |
pneumatic |
110 l/min |
5–6 bar (87 psi) |
PLC Panasonic |
110–240V / 50–60Hz. |
Machine: 75kg, Base: 89kg |
max. 250 x 120mm |
max. 260 x 250mm |
0.5/10mm |
4x56,3x70,2x86,2x120mm |
1-4 |

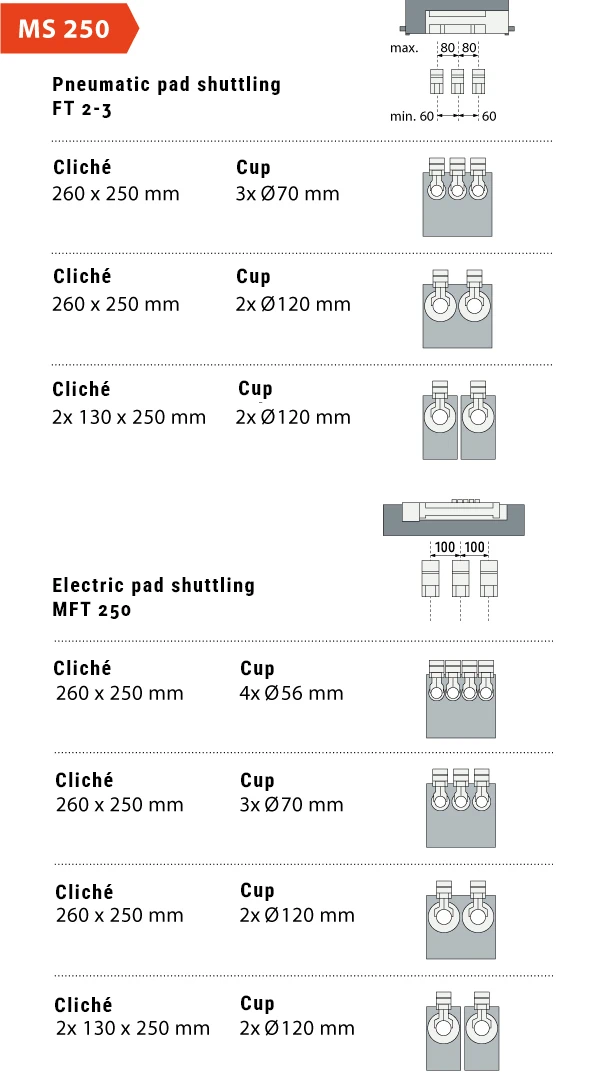

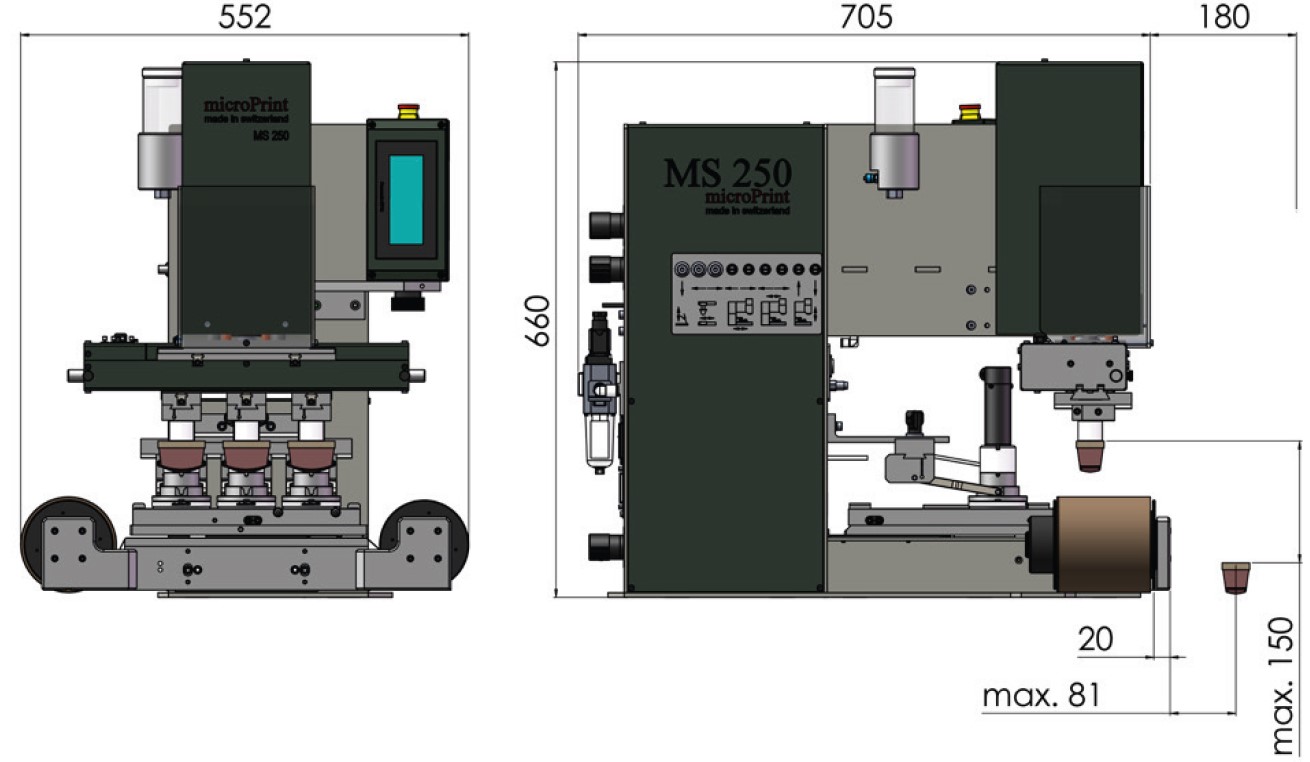

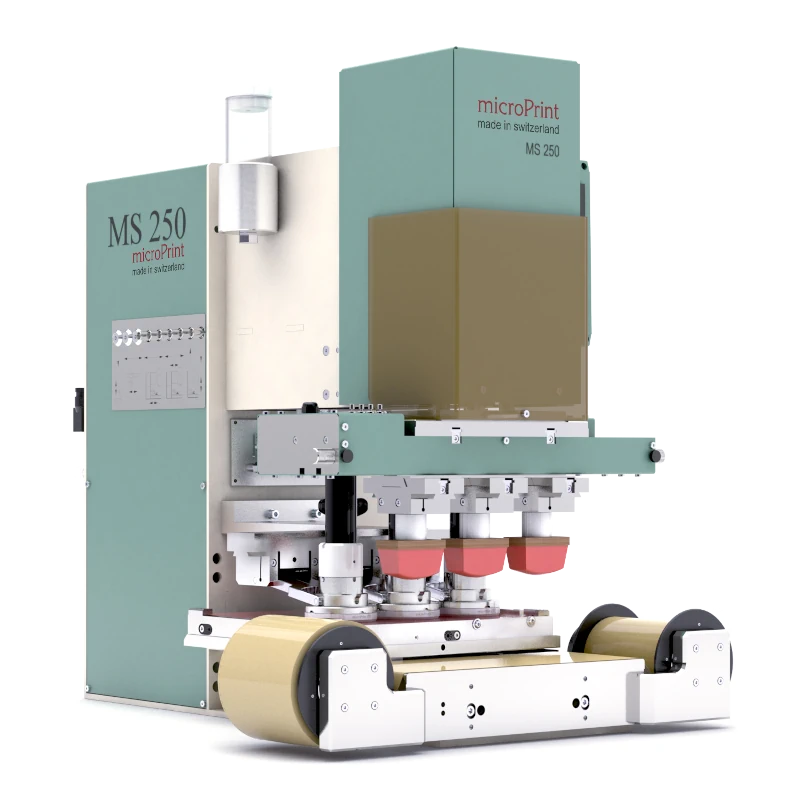

MS 250 |
|  | |

| until 1200/hr |
max. 1100N |
pneumatic |
|
5–6 bar (87 psi) |
PLC Panasonic |
110–240V / 50–60Hz. |
90kg |
max. 350 x 120mm |
max. 400 x 250mm |
0.5/10mm |
6x56,5x70,4x86,3x120mm |
1-6 |
MS 350 |
|  | |

| until 1000/hr |
max. 3000N |
pneumatic |
270 l/min |
5–6 bar (87 psi) |
PLC Panasonic |
110–240V / 50–60Hz. |
300kg |
max. 500 x 150mm |
max. 520 x 300mm |
max. 800 x 120mm |
0.5/10mm |
8x56,6x70,5x86,4x120,3x140mm |
1-8 |
MS 500 / MS 500 Slide |
|  | |
