MSS Line

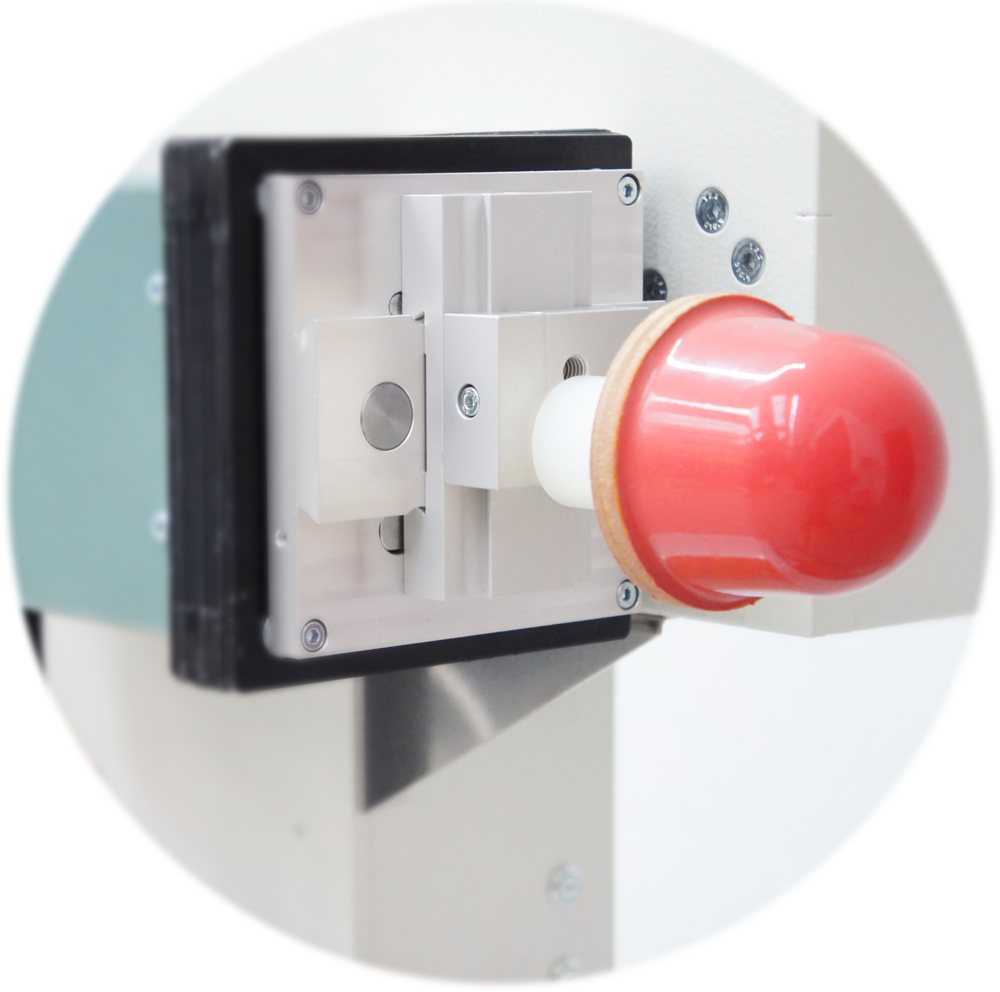

The MSS line are pad printing machines with swivel heads needed for horizontal prints
Features:
- Closed inkwell system
- Pad cleaning
- Mechanically adjustable positions
- Automatic ink thinners
- MSS350: Pneumatic three-color or electric multi-ink pad shuttles
- Digital interfaces or real-time Ethernet
Introduction movie:
Specification:

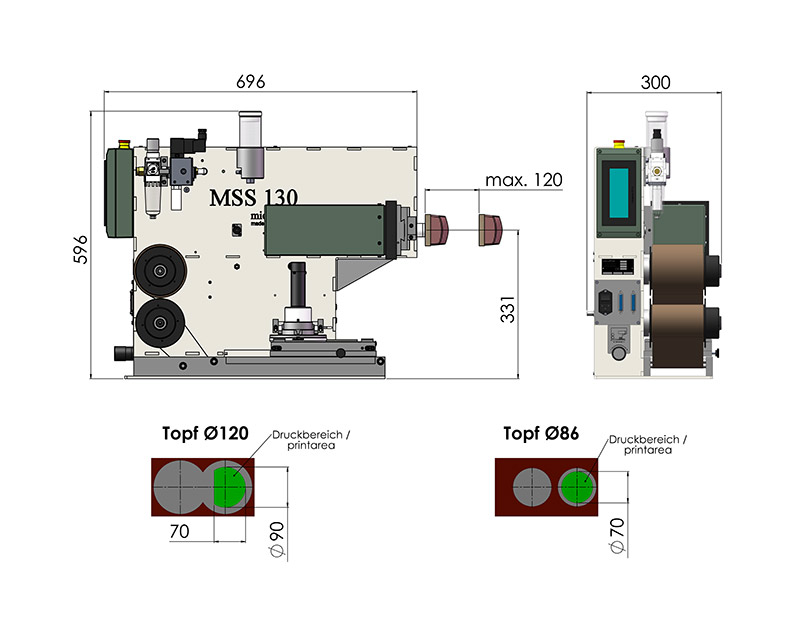

| MSS 130 | ||
 | Printing capacity: | wo.c. 1800/hr, w.c. 1200/h |
| Printing force: | max. 480N | |
| Drive: | pneumatic | |
| Air consumption: | 115 l/min | |
| Compressed air supply: | 5–6 bar (87 psi) | |
| Control system: | PLC Panasonic | |
| Main voltage: | 110–240V / 50–60Hz | |
| Weight: | 60kg | |
| Cliché size open system: | ||
| Cliché size closed system: | max. 130 x 230mm | |
| Cliché thickness:: | 0.5/10mm | |
| Cups: | 1x86,1x120mm | |
| Number of colours: | 1 | |
| Data sheet in PDF: | MSS, 130, 130E | |
 | ||
| MSS 350 | ||
 | Printing capacity: | wo.c. 1200/hr, w.c. 900/hr |
| Printing force: | max. 1100N | |
| Drive: | pneumatic, electric | |
| Air consumption: | 105 l/min | |
| Compressed air supply: | 5–6 bar (87 psi) | |
| Control system: | PLC Panasonic | |
| Main voltage: | 110–240V / 50–60Hz | |
| Weight: | 96kg | |
| Cliché size open system: | ||
| Cliché size closed system: | max. 420 x 250 x 0.5mm, max. 260 x 250 x 10mm | |
| Cliché thickness: | 0.5/10mm | |
| Cups: | 6x56,5x70,4x86,3x120mm | |
| Number of colours: | 1-6 | |
| Data sheet in PDF: | MSS 350 | |
| ||
