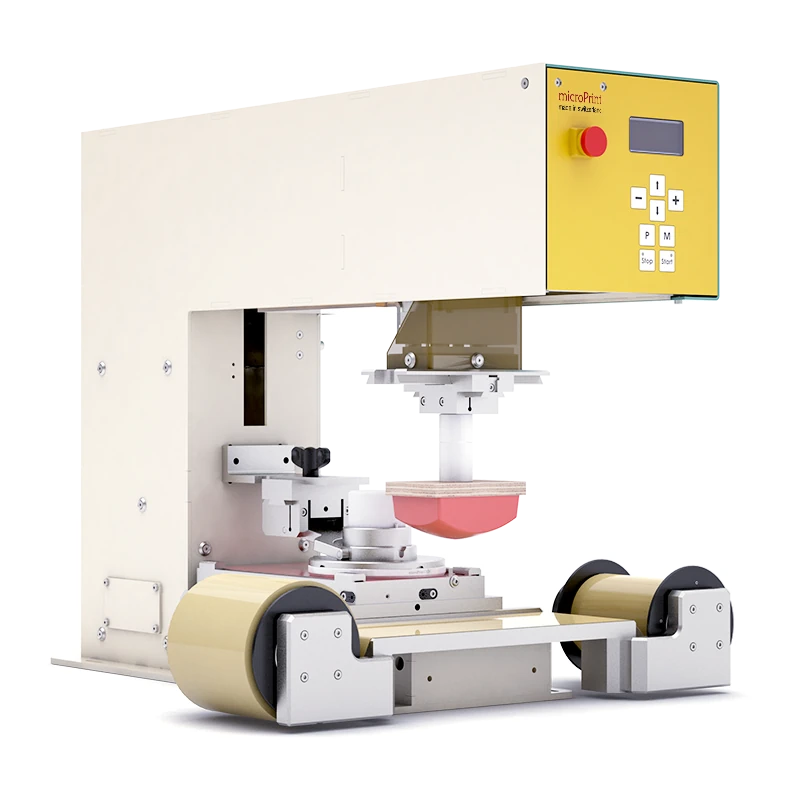

Smart line
The Smart line is an inexpensive pad printing machine for manual use. It is a manageable machine for large and small series in advertising printing.

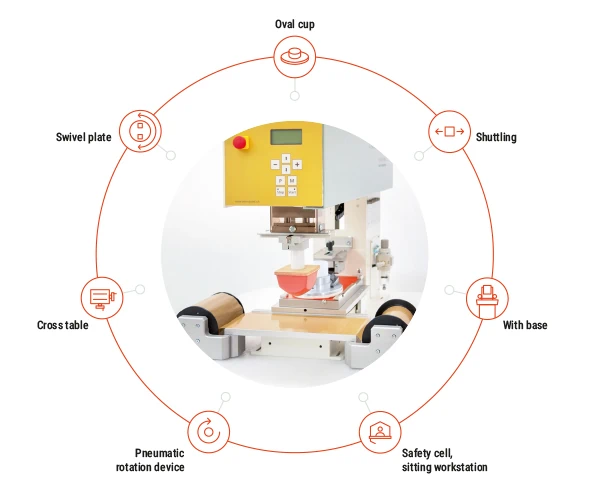

Features:
- Open or closed inkwell system
- Pad cleaning
- Pneumatic two- or three-color pad shuttle
- Pneumatic rotary device
- Digital interfaces
Introduction movie:
Specification:
| Smart 130 | ||||||
 | Printing capacity: |
| ||||
| Printing force: | max. 960N | |||||
| Drive: | pneumatic | |||||
| Air consumption: | 116 l/min | |||||
| Compressed air supply: | 5–6 bar (87 psi) | |||||
| Control system: | Microprocessor | |||||
| Main voltage: | 110–240V / 50–60Hz. | |||||
| Weight: | 60kg | |||||
| Cliché size open system: | max. 120 x 150mm | |||||
| Cliché size closed system: | max. 130 x 250mm | |||||
| Cliché thickness: | 0.5/10mm | |||||
| Cups: | 1x56,1x70,1x86,1x120mm | |||||
| Number of colours: | 1 | |||||
| Data sheet in PDF: | Smart 130 | |||||
 | ||||||

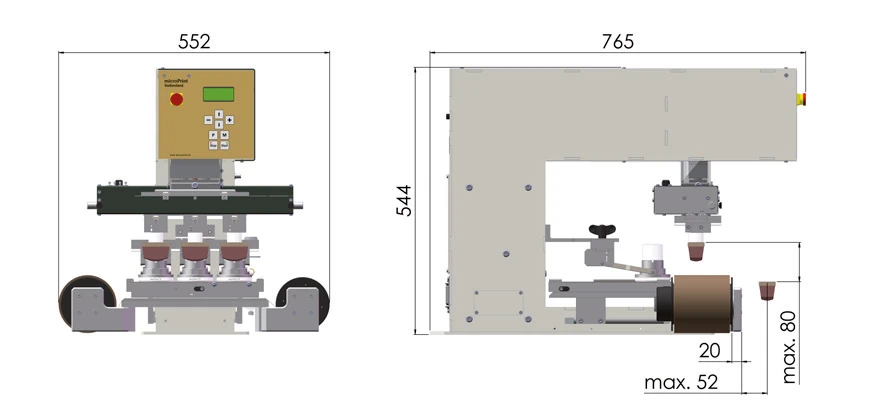

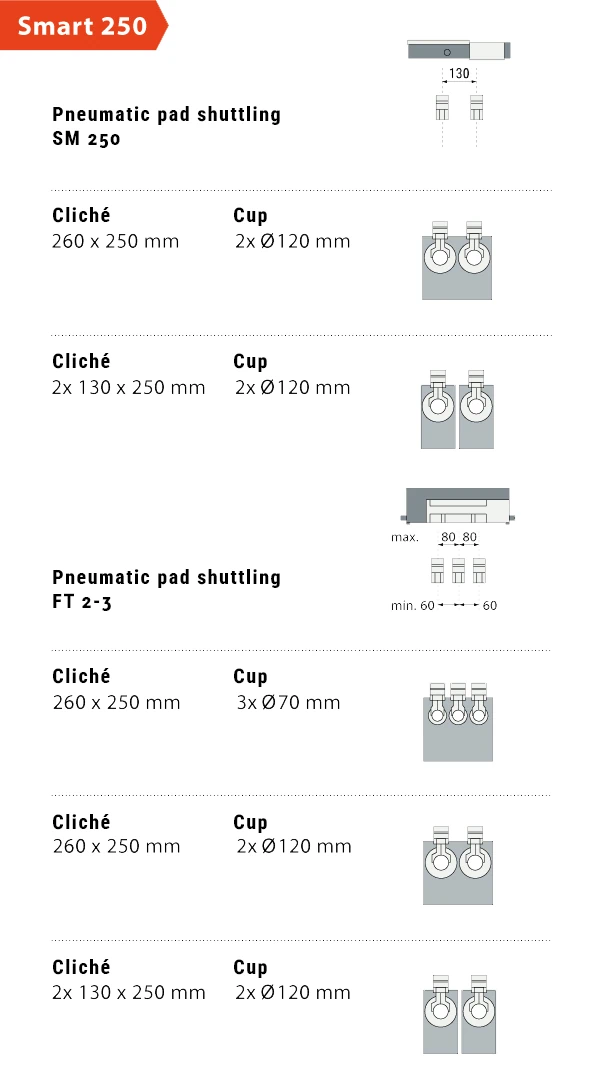

| Smart 250 | ||||||
 | Printing capacity: |
| ||||
| Printing force: | max. 960N | |||||
| Drive: | pneumatic | |||||
| Air consumption: | 116 l/min | |||||
| Compressed air supply: | 5–6 bar (87 psi) | |||||
| Control system: | Microprocessor | |||||
| Main voltage: | 110–240V / 50–60Hz. | |||||
| Weight: | 60kg | |||||
| Cliché size open system: | max. 250 x 120mm | |||||
| Cliché size closed system: | max. 260 x 250mm | |||||
| Cliché thickness: | 0.5/10mm | |||||
| Cups: | 4x56,3x70,2x86,2x120mm | |||||
| Number of colours: | 1-3 | |||||
| Data sheet in PDF: | Smart 250 | |||||
